Perigon ovens as required

The selection ranges from compact, space-saving ovens in-store concepts through to systems for efficient mass-production. The machines differ in size, loading and unloading areas, the number of heat chambers and thus productivity ability. Our ovens Perigon 1000, 2000 and 3000 offer the right solution for every need.


Perigon 1000 - for low volume production



The Perigon 1000 oven with it's one tray and heating chamber, is compact and particularly suitable for businesses lacking space. The configuration of the oven can include a monitor, which is an eye-catcher in retail stores for the customers, with the complete process being followed live on the monitor and can take about 30 minutes.



In addition, to the right type of a model to meet the requirements of your company, other services include printers, films for transfer to various substrates, and the dryers to dry the printed film, the full set up needed to ensure your product can be transferred to comprehensive Technical Support.

Low volume production - advantages

  • i.e. 5 bottle (sides) per cycle
  • 12 Cycles per hour
  • Single Tray Operation
  • Tray size of 600 x 600mm
  • 30 full wrap prints per hour
  • In store personalisation
  • Low volume personalised operations
  • Sampling​
  • 1 operator per machine

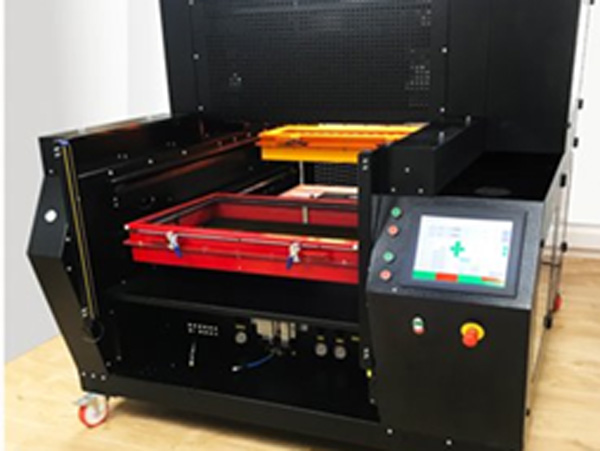

Perigon 2000 - mid volume production

The Perigon 2000 oven consists of two trays and one heating chamber. While the film is heated and transferred to the 3D objects in the heating chamber the second tray can be filled. Providing a fast and more efficient process with higher volumes.

In addition, to the right type of a model to meet the requirements of your company, other services include printers, films for transfer to various substrates, and the dryers to dry the printed film, the full set up needed to ensure your product can be transferred to comprehensive Technical Support.



Mid volume production - advantages

  • 10 bottle (sides) per cycle
  • 15 Cycles per hour
  • Twin Tray Operation
  • Tray size up to 750mm x 900mm
  • 75 full wrap prints per hours
  • Mid-sized batch production industries
  • High level of customisation possible
  • 1 or 2 operators per machine

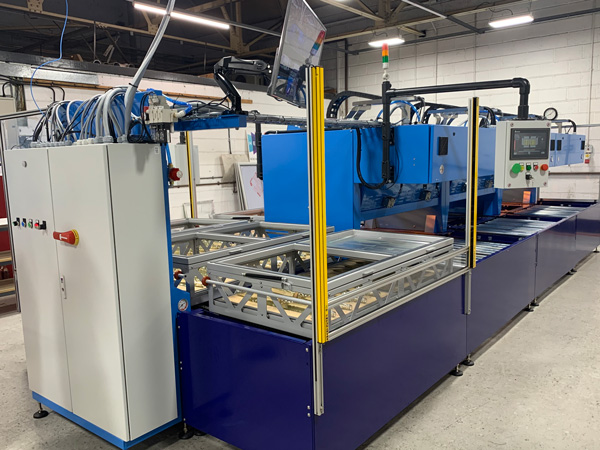

Perigon 3000 - for efficient mass production

The Perigon 3000 is built to cover efficient mass production, compromising of more heat chambers, and numerous trays it is has an automated process, allowing fast, efficient production.



In addition, to the right type of a model to meet the requirements of your company, other services include printers, films for transfer to various substrates, and the dryers to dry the printed film, the full set up needed to ensure your product can be transferred to comprehensive Technical Support.



High volume production - advantages

  • 16 bottle (sides) per cycle
  • 60 Cycles per hour
  • Multiple tray / oven operation
  • Tray size up to 650mm x 1200mm
  • 480 full wrap prints per hour
  • High volume continuous production e.g. bottles, mugs.
  • Customisation possible
  • 2 operators per machine
